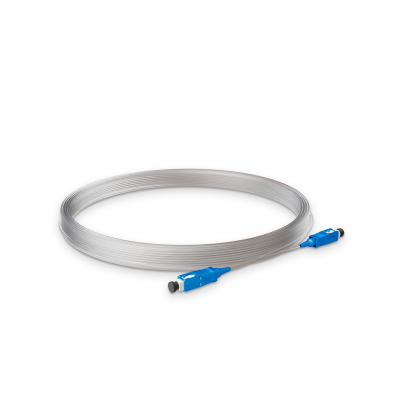

Fiber optic patch cord NanoConnect SC/UPC-SC/UPC Transparent PVC, Singlemode G.657.А2 (SM) Flex, Simplex, 0,9mm - 20 m

В наявності
0
Product Code: 11001
SKU: 11001
298.00 грн
Short descriptio
20-meter simplex indoor optical patch cord with SC/UPC connectors on both ends, made of Ukrainian-produced G.657.A2 single-mode fiber with a diameter of 0.9mm. The patch cord is manufactured using high-quality materials ... Read more...

20-meter simplex indoor optical patch cord with SC/UPC connectors on both ends, made of Ukrainian-produced G.657.A2 single-mode fiber with a diameter of 0.9mm. The patch cord is manufactured using high-quality materials ensuring low attenuation and minimal signal loss, thus enhancing network performance.

Featuring Flex type single-mode fiber, the patch cord has a smaller bending radius compared to standard G.652.D fiber, making it more convenient and flexible to install during network deployment. This is particularly important for FTTx network construction, where numerous directional changes and limited cabinet sizes need to be considered. Patch cords are primarily used in customer cable entrances such as subscriber outlets and final distribution points.

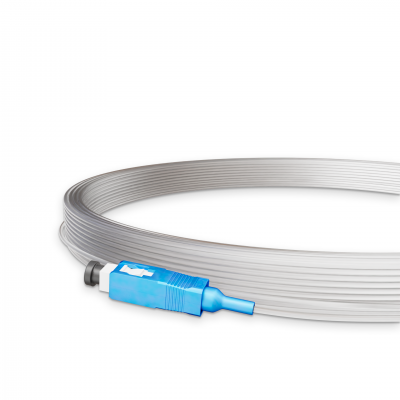

The specially transparent cable jacket allows inconspicuous use in interior settings. With a diameter of 0.9mm, the patch cord can be easily installed in narrow grooves, trenches, or dedicated communication openings. The cable supports data transmission at a maximum transfer rate of up to 10 Gbps at wavelengths of 1310nm or 1550nm, making it ideal for indoor or inter-building network deployments.

Applications: Used for branching optical signals in passive optical networks such as EPON, GPON, BPON, FTTX, FTTH, CATV networks, LAN, WAN, MAN, testing equipment, and fiber-optic communication systems. It ensures reliability, high performance, and good IL (Insertion Loss) & RL (Return Loss) parameters.

Features:

  • Made with ❤️ in Ukraine
  • Quality check of each cable production
  • Low attenuation and minimal signal loss
  • Zirconia ceramic ferrule with 0.5µ accuracy tolerance
  • High-quality plastic for impact resistance and deformation resistance
  • 20-meter SC-SC SM Simplex patch cord with PVC jacket can be used in creating indoor data transmission networks (Structured Cabling Systems) in server rooms and data centers (Data Centers)
  • Black protective caps protect the ferrule from damage

Product Parameters:

  • Patch cord name: Fiber optic patch cord NanoConnect SC/UPC-SC/UPC Transparent PVC, Singlemode G.657.А2 (SM) Flex, Simplex, 0,9mm - 20 m

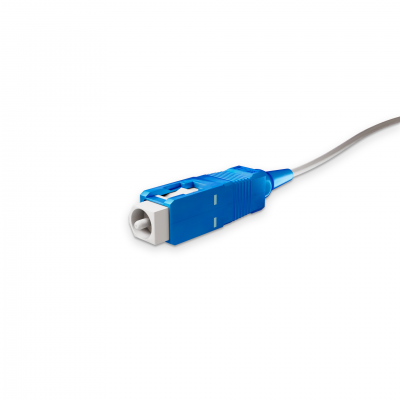

  • Connector type: SC/UPC-SC/UPC (Blue SC to Blue SC)
  • Patch cord length: 20 m
  • Fiber: SM 9/125 (µm)
  • Type of optical fiber: G.657.A2 Flex
  • Wire diameter: 0.9mm
  • Insertion loss: ≤0.1dB
  • Return loss: ≥-50dB
  • Operating temperature: -20 ~ +70 (°C)
  • Quantity per package: 1 piece
  • Cable jacket material: PVC outer transparent jacket
  • Conforms to TIA-604 (FOCIS) standard

Warranty:

  • 14-day return policy for quality issues
  • 2 years warranty from the company
General Characteristics
Cable length (m) 20
Connector type SC-SC
Polishing type UPC-UPC
Patch cord type Simplex
Fiber type standart G.657.А2
Fiber type Singlemode G.657.А2
Fiber diameter, μm 9/125
Optical fiber type OS2
Cable outer shell diameter, mm 0,9
Cable type Round
Cable Sheath Material PVC
Inserted Loss, dB ≤0,10
Return Loss, dB UPC: ≤ -50
Minimum Bend Radius, mm 7.5
Permissible Operating Temperature, °C -20 – +50
Warranty 24 months
Cable color Transparent
Connector and polishing type SC/UPC-SC/UPC
